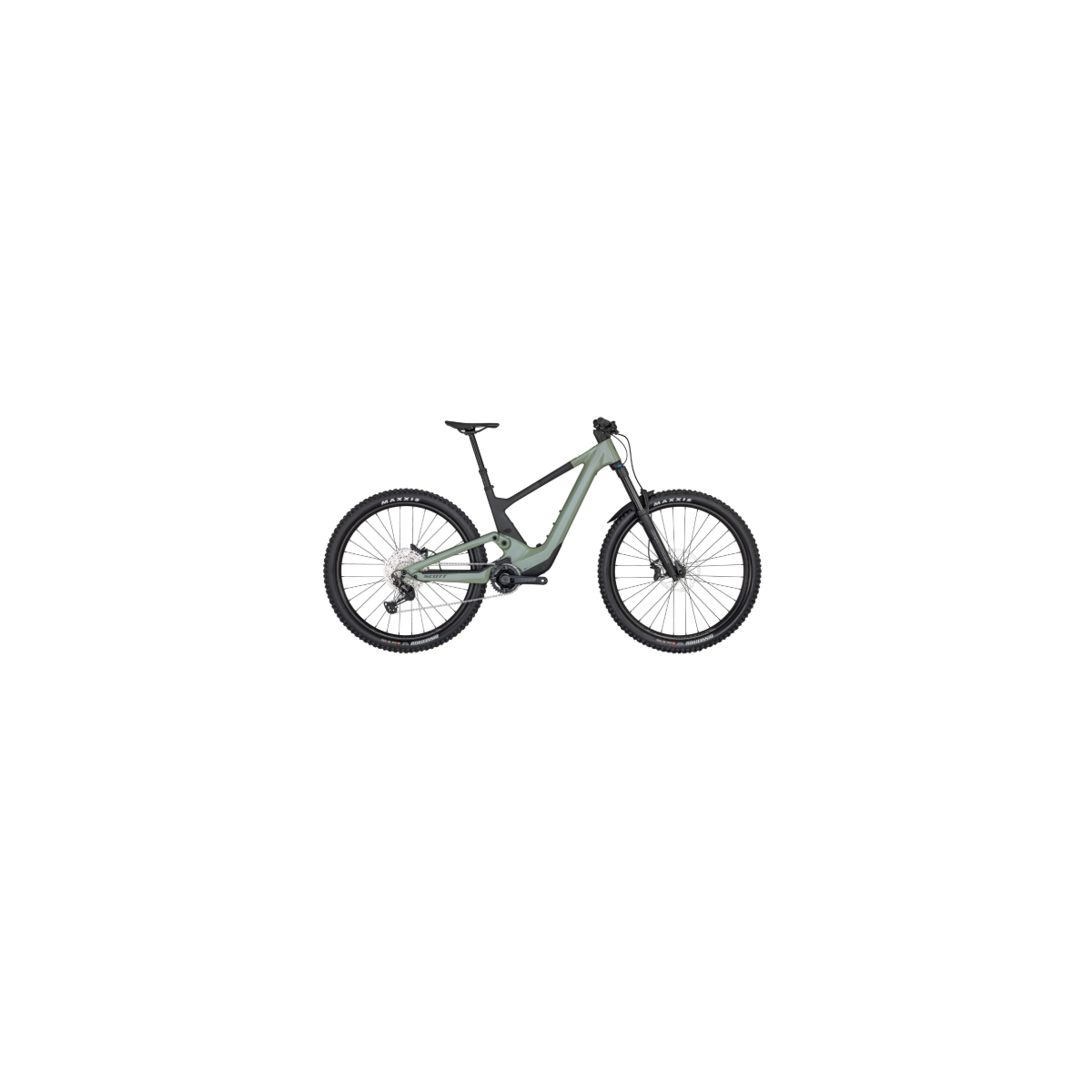

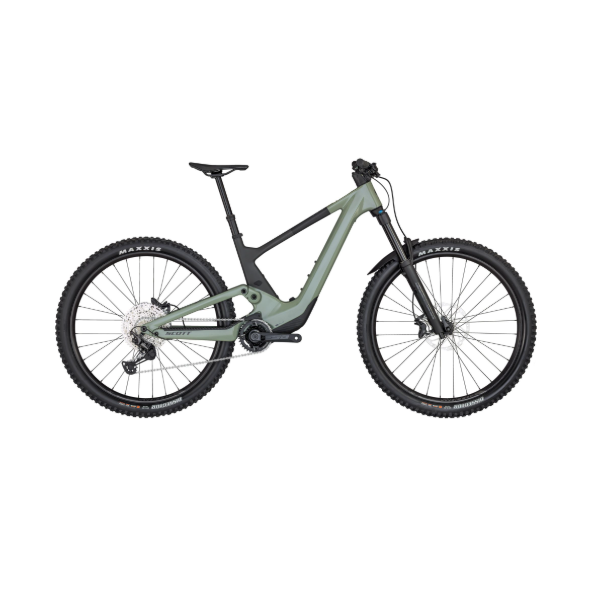

E-MTB Scott Voltage eRIDE 910
Telaio:
Carbon HMF
Integrated Suspension Technology
Virtual 4 Link kinematic / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
Range Extender Ready
Escursione:
Front: 160mm / Rear: 155mm
Forcella:
Fox 36 Float Rhythm Air Grip
3 modes / 15x110mm QR axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 160mm travel
Ammortizzatore posteriore:
Fox NUDE 6T EVOL Trunnion
Scott custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Low Speed Adj. / Custom large Air volume / Reb. Adj.
Travel 155-100-Lockout / T185X55mm
Comando remoto:
Scott TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
Motore:
TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph
Batteria:
TQ Internal 360Wh
Schermo:
TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app
Caricatore:
TQ 100-240V-4A
deragliatore posteriore:
Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed
Leve del cambio:
Shimano Deore SL-M6100-IR / Rapidfire Plus
I-spec EV clamp
Guarnitura:
Fsa Alloy crankset / 175mm / 34T
Guidacatena:
e*thirteen / e*spec Slider
Corona:
Scott custom spider / Fsa 12Speed 34T chainring
catena:
Shimano CN-M6100
Cassetta:
Shimano CS-M6100 / 10-51 T
freni:
Shimano Deore M6120 4-Piston Disc
Disco del freno:
Shimano SM-RT64 CL / F&R 203mm
Manubrio:
Syncros Hixon 1.5 Alloy 7050
Size S & M 15mm rise / Size L & XL 25mm rise
back sweep 8° / 780mm
Syncros Endurance lock-on grips
Attacco manubrio:
Syncros AM 1.5
Syncros Cable Integration System
4° rise / 7050 Alloy / 31.8mm / 1 1/8"
Reggisella:
Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm
S size 140mm / M size 180mm / L & XL size 210mm
sella:
Syncros Tofino 1.5 Regular
Titanium rails
Serie sterzo:
Syncros - Acros Angle adjust & Cable Routing HS System
Stainless / +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
Mozzo anteriore:
Formula CL-811 / 15x110mm
Mozzo posteriore:
Formula CL-148M / 12x148mm
Raggi:
Stainless Black 15G / 1.8mm
Cerchio:
Syncros X-30S / 32H / 30mm / Sleeve Joint
Tubeless ready
Gomma anteriore:
Maxxis Dissector / 2.6" / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra
Gomma posteriore:
Maxxis Dissector / 2.6" / 60TPI Foldable
Tubeless Ready / EXO 3C maxx Terra
Extra:
Syncros Fork Fender
Peso in kg (approx.):
19.5 (with tubes)
Peso in lbs (approx.):
42.99 (with tubes)
