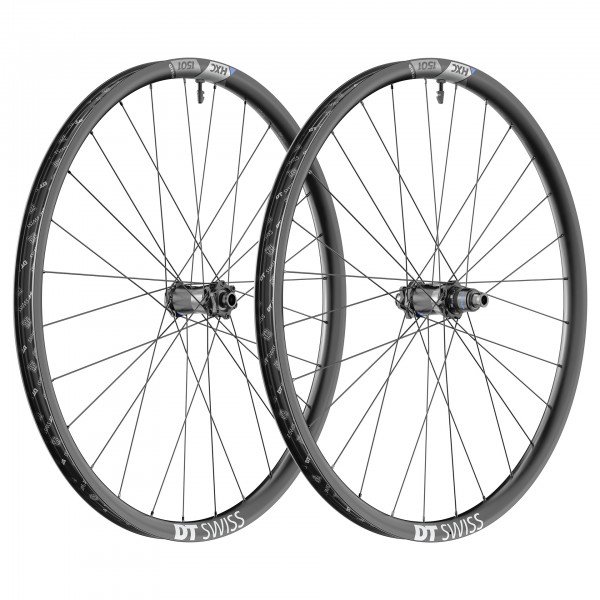

DT Swiss HXC 1501 SPLINE ONE 29 Sram XDR Wheelset

DT Swiss HXC 1501 SPLINE ONE 29 Sram XDR Wheelset

This Hybrid wheelset was created for cyclists looking for the maximum performance that an MTB wheelset can offer. Now combined with a carbon rim, the HXC 1501 SPLINE ONE becomes the high-end hybrid MTB wheelset of the DT Swiss offering. The carbon rim is combined with a completely redesigned hub body, for better resistance to traction and braking torque typical of more powerful motors and heavier eMTBs. With the new 30-tooth EXP OS Ratchet system, the torque developed by the engine and the rider is transmitted directly from the pedals to the ground. This transfer takes place via reinforced spokes, for even more explosive acceleration than in the previous Hybrid range. Every component has been thought, developed and tested to ensure fun and worry-free riding at all levels.

HUB TYPE 240 with Ratchet EXP OS 30

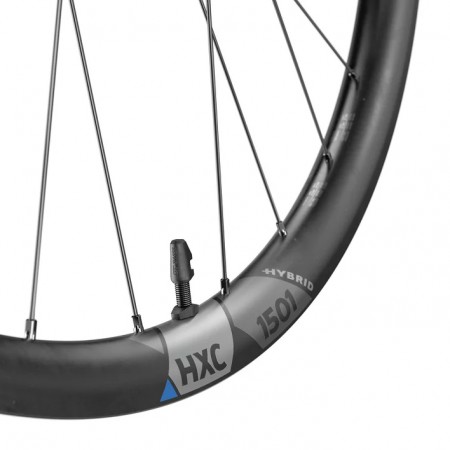

RIM Carbon, Hookless tubeless TSS
INTERNAL WIDTH 30mm, 35mm
RAYS DT hybrid 2 straightpull

REAR WHEEL
HXC 1501 SPLINE ONE 29 - 30mm IS 12/148mm Sram

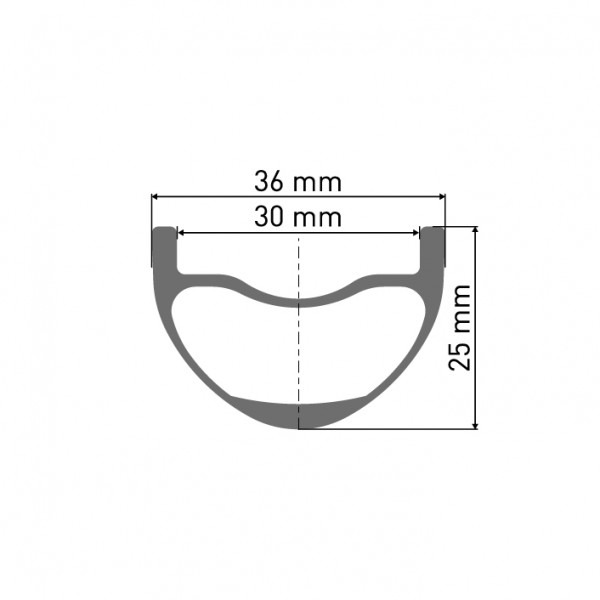

Rim inner width 30mm, Rim height 25mm
Sram Steel freehub body
for thru axle 12/148mm TA Boost

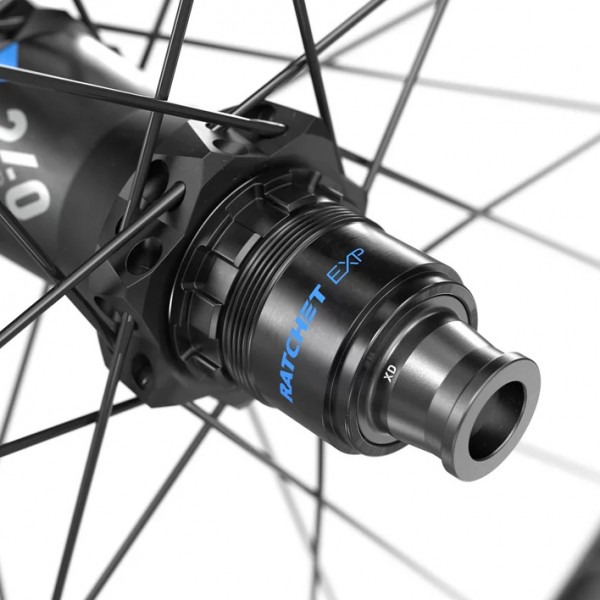

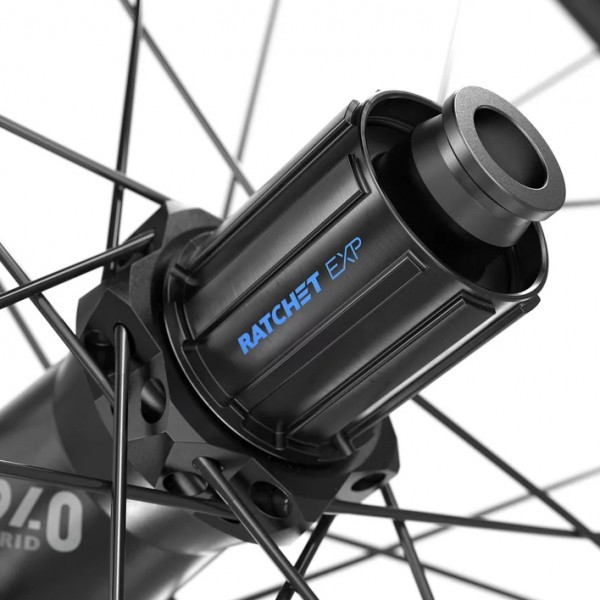

Ratchet EXP OS

Products category Hybrid Mtb

Field of application Hxc

Product Type 1501

Net Weight [g] 1020,000

Maximum Recommended Weight 140 Kg

ASTM classification 4

Recommended for E-Bikes Yes (max. 32km/h or Max. 250W)

Material Carbon

Tire interface Hookless Tubeless Tss

Wheel Diameter 622mm (29" / 700C)

Type Of Decals Waterslide

Profile height 25mm

Internal Width 30mm

External Width 36mm

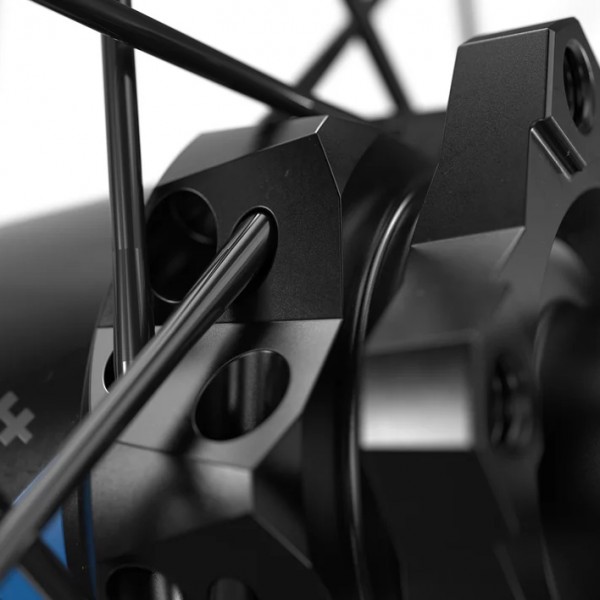

Hub

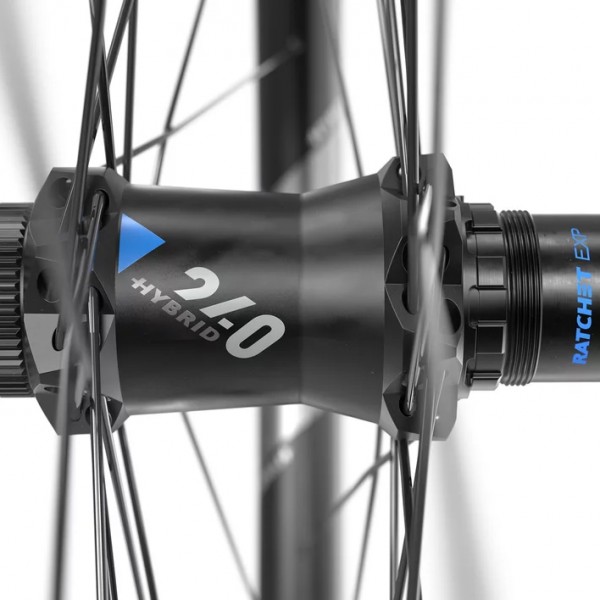

Hub type 240

Axis system 12mm Thru Axle

Made in Dimensions 148mm boost

Disc Attack System Disc Is (6-Bolt)

Freewheel Body Sram Xd Steel (ssram)

Cassette interface Sram Xd

Freewheel system Ratchet Exp Os 30

Spokes And Nipples

Left Side Spokes Dt Hybrid 2 Straightpull

Right Side Spokes Dt Hybrid 2 Straightpull

Ray Pattern Three-Cross (1:1)

Nipples Dt Pro Lock Squorx Pro Head Alu

Accessories

Tape included Tubeless tape 32mm

Including Valve Valve Tl Alu Black 18-25 Mm

FRONT WHEEL
HXC 1501 SPLINE ONE 29 - 30mm IS 15/110mm
Rim inner width 30mm, Rim height 25mm
for thru axle 15/110mm TA Boost

Products category Hybrid Mtb

Field of application Hxc

Product Type 1501

Net Weight [g] 878,000

Maximum Recommended Weight 140 Kg

ASTM classification 4

Recommended for E-Bikes Yes (max. 32km/h or Max. 250W)

Material Carbon

Tire interface Hookless Tubeless Tss

Wheel Diameter 622mm (29" / 700C)

Type Of Decals Waterslide

Profile height 25mm

Internal Width 30mm

External Width 36mm

Hub

Hub type 240

Axis system 15mm Thru Axle

Made in Dimensions 110mm boost

Disc Attack System Disc Is (6-Bolt)

Freewheel Body -

Cassette interface -

Freewheel system -

Spokes And Nipples

Left Side Spokes Dt Hybrid 2 Straightpull

Right Side Spokes Dt Hybrid 2 Straightpull

Ray Pattern Three-Cross (1:1)

Nipples Dt Pro Lock Squorx Pro Head Alu

Accessories

Tape included Tubeless tape 32mm

Including Valve Valve Tl Alu Black 18-25 Mm
