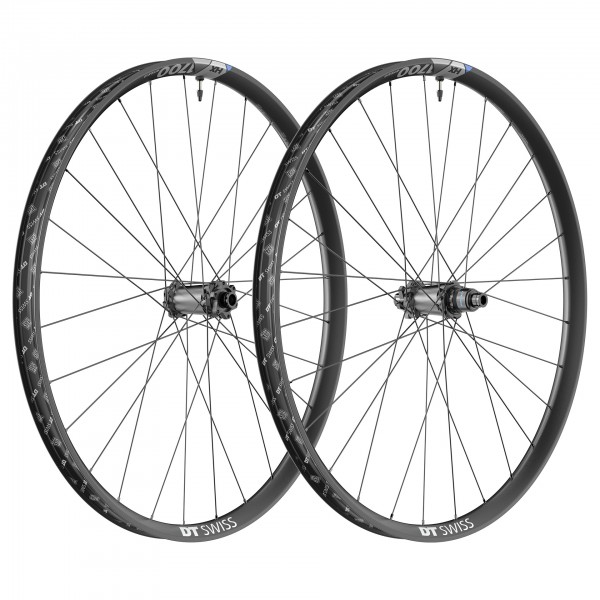

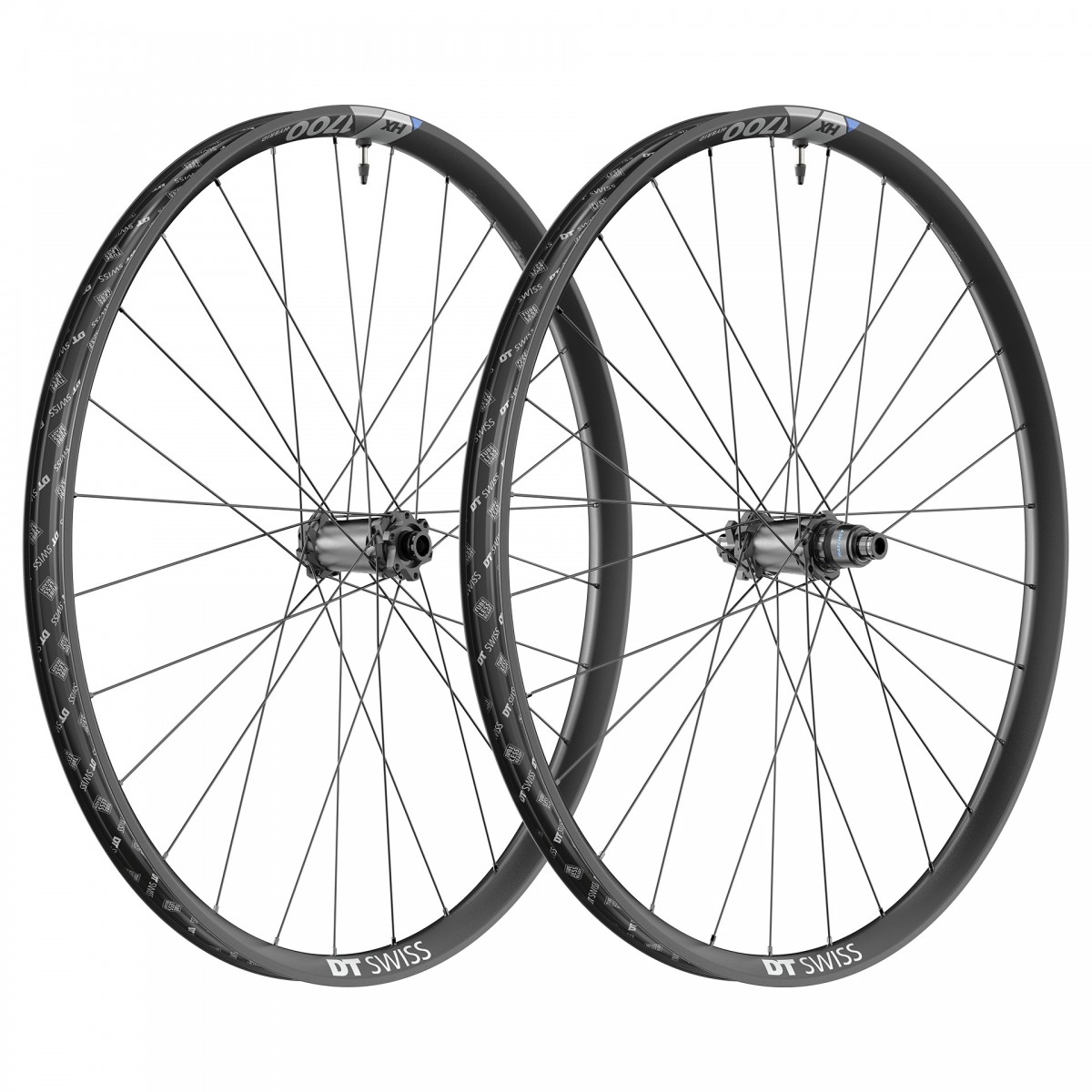

DT Swiss HX 1700 SPLINE 29 Sram XDR Wheelset

DT Swiss HX 1700 SPLINE 29 Sram XDR Wheelset

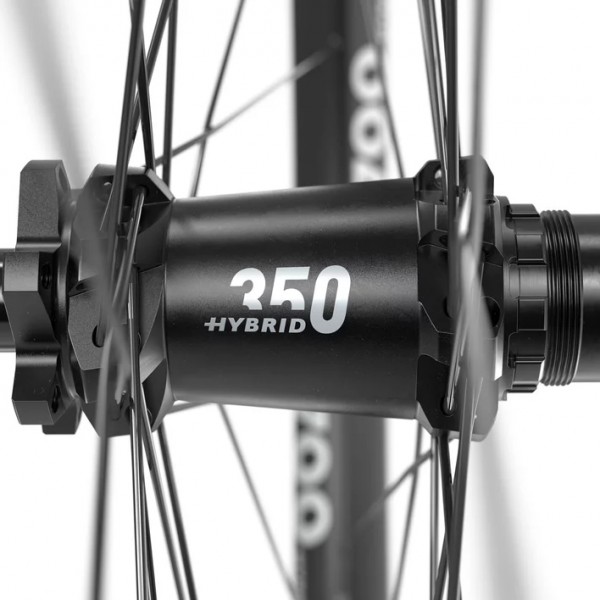

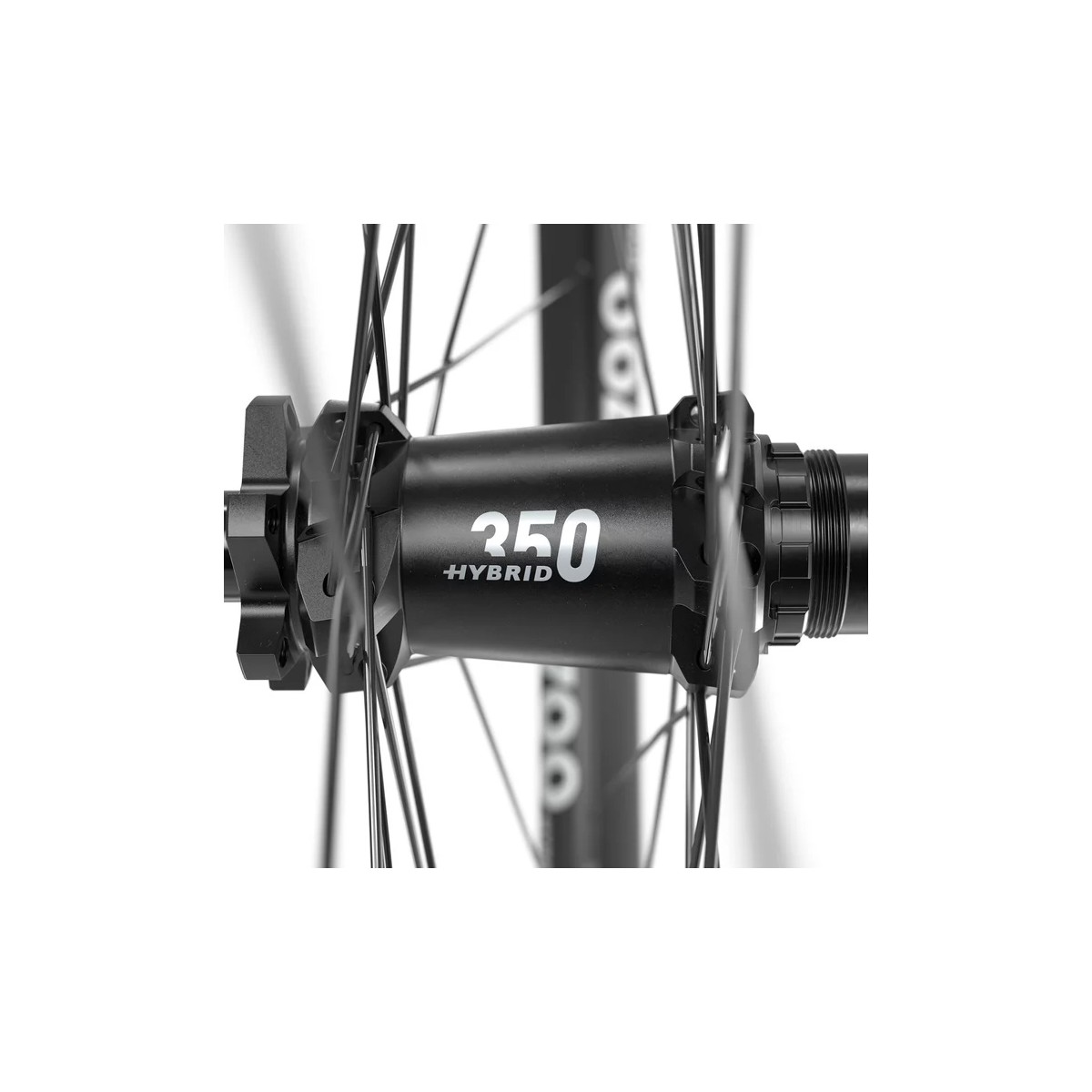

An eMTB is designed to get up and down mountains quickly and ensure maximum enjoyment. The new HX 1700 SPLINE high-end aluminum wheelset does just that. With several years of experience in hybrid bicycle components and very strict specific test procedures, DT Swiss has redesigned this wheelset to respond to the growing demand for e-mountain bikes. Completely redesigned, the 350 hub features a larger body, which allows for better resistance to braking torque and drive torque, for increased reliability and service life. The new hub is now combined with a high-end welded aluminum rim and reinforced hybrid spokes. Available in two internal widths and two sizes, this wheel is ready for all those who want to experience borderless eMTB adventures. HUB TYPE: 350 with Ratchet System 36 SL

HUB TYPE 350 with Ratchet System 24

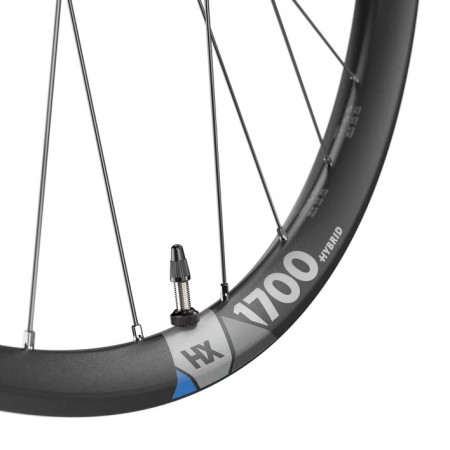

RIM Aluminum, Hooked / Crotchet tubeless TC
INTERNAL WIDTH 30mm, 35mm

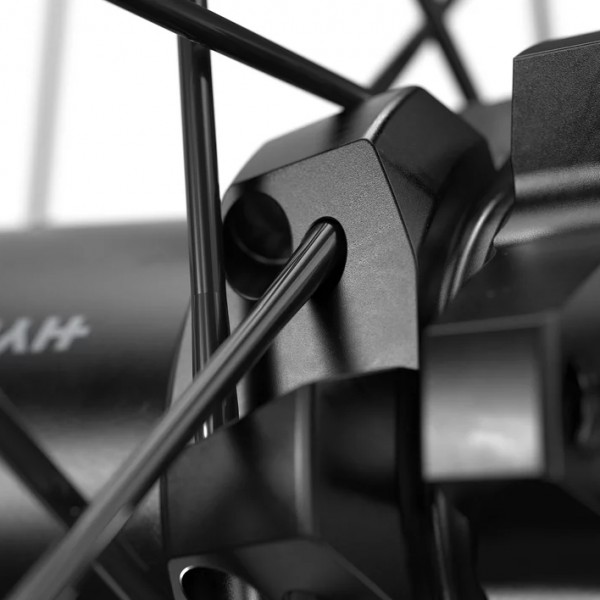

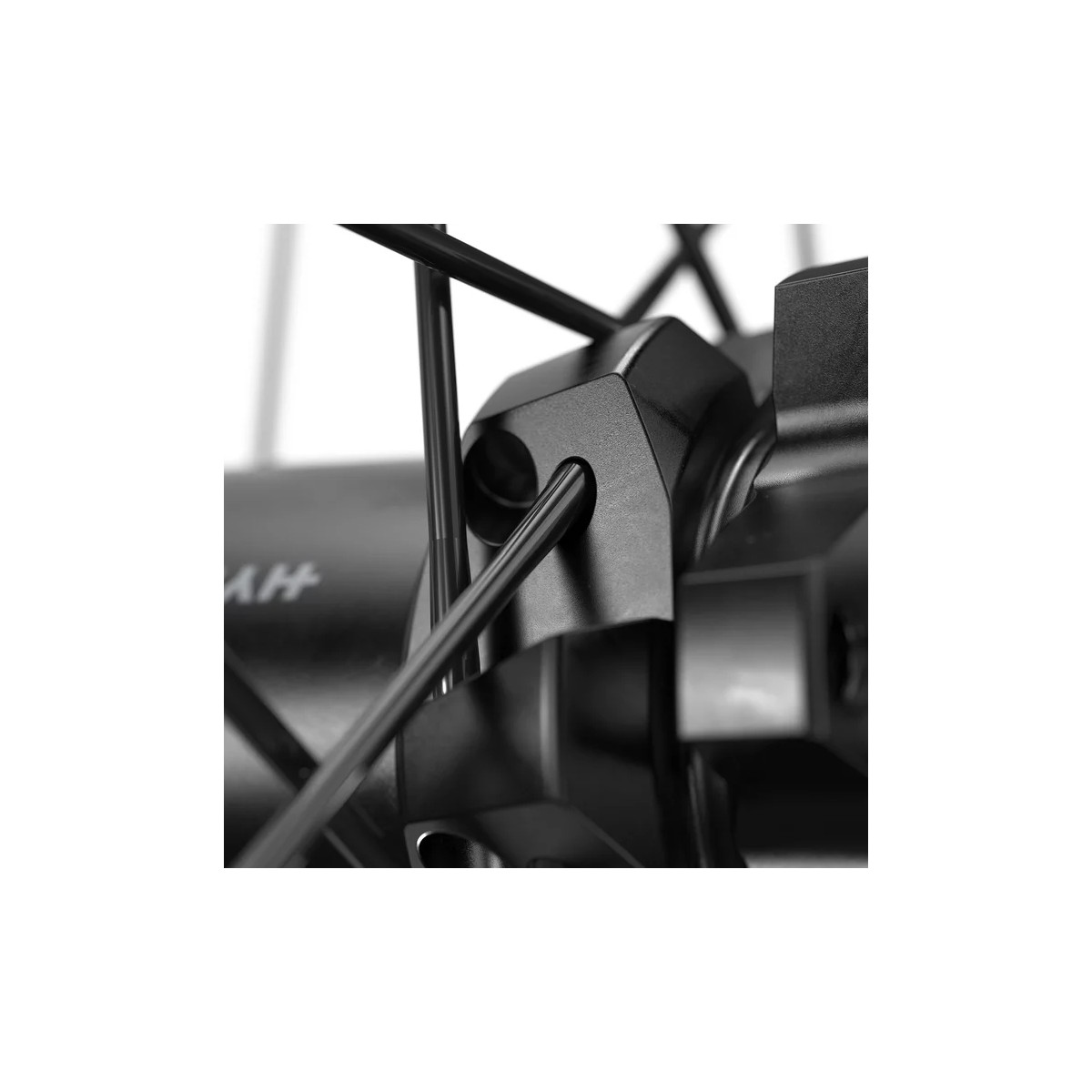

RAYS DT hybrid 1 straight pull

REAR WHEEL
HX 1700 SPLINE 29 - 30MM CL 12/148MM Sram

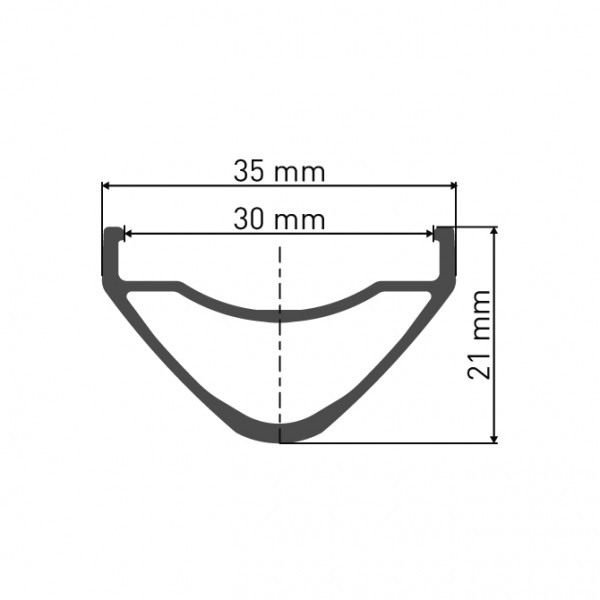

Rim inner width 30mm, Rim height 21mm

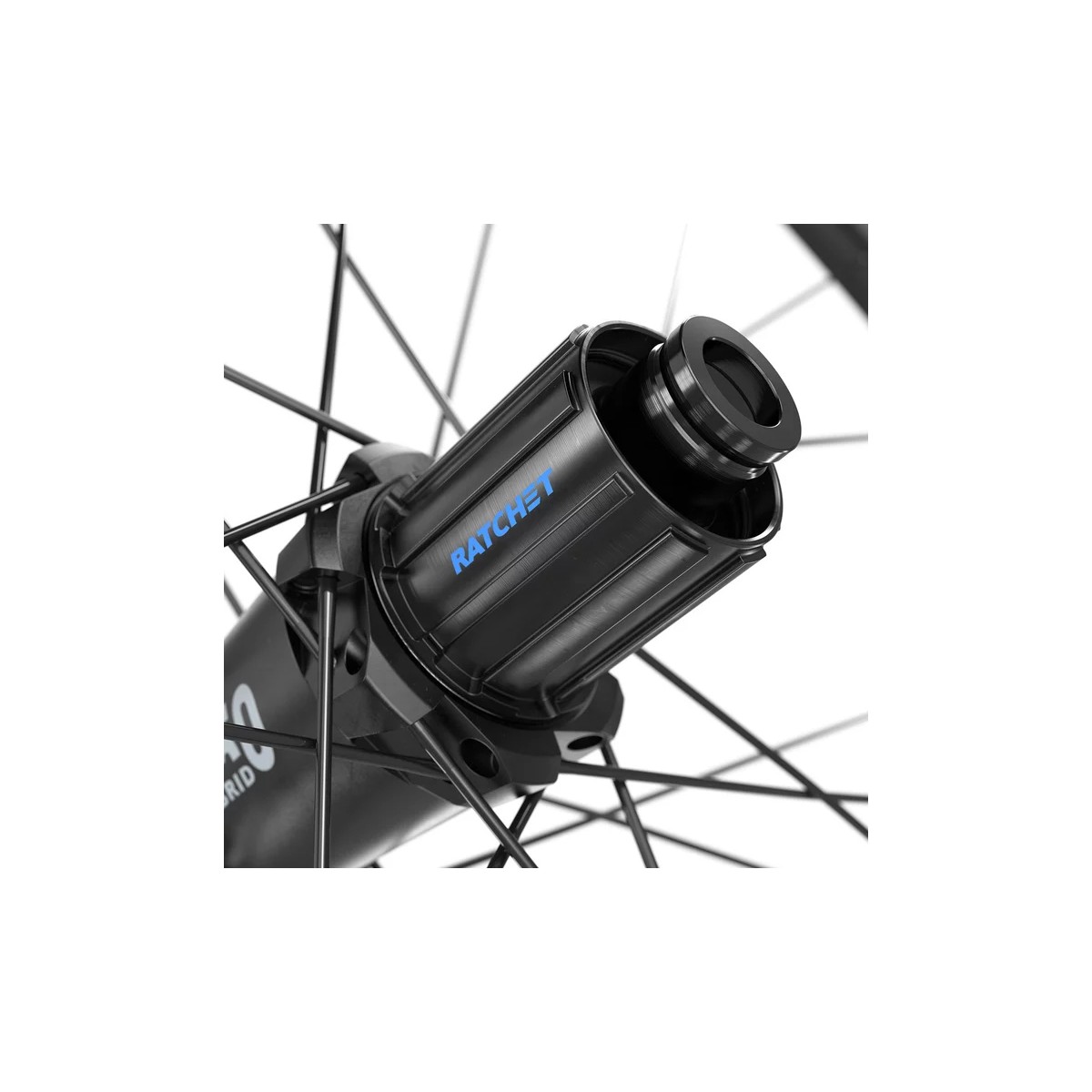

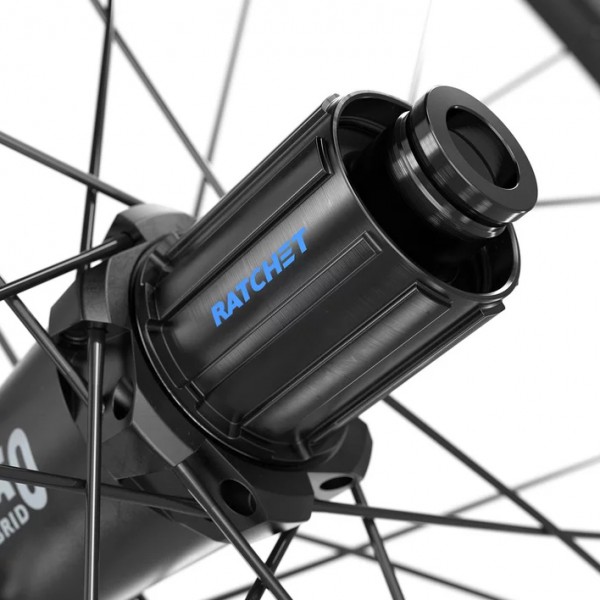

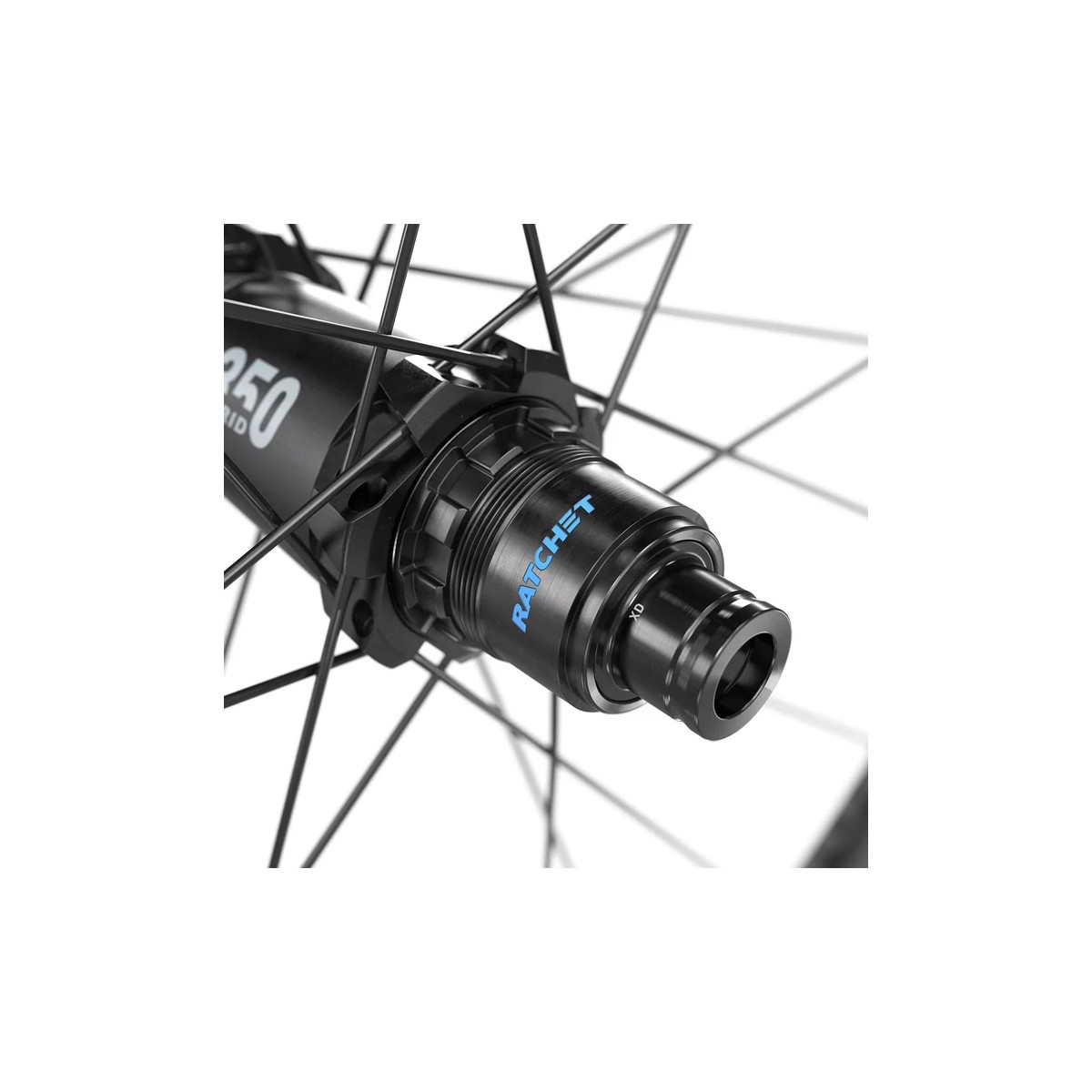

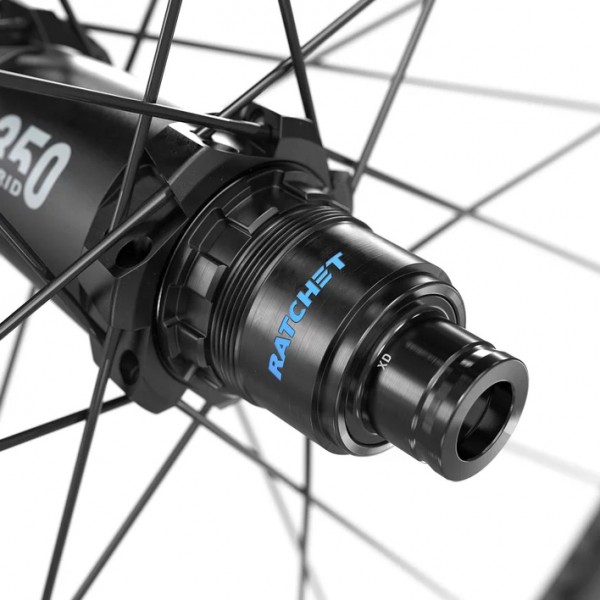

Sram Steel freehub body
for thru axle 12/148mm TA Boost
Ratchet

Products category Hybrid Mtb

Field of application Hx

Product Type 1700

Net Weight [g] 1132,000

Maximum Recommended Weight 150 Kgs

ASTM classification 4

Recommended for E-Bikes Yes (max. 32km/h or Max. 250W)

Material Aluminum

Tire interface Hooked / Crotchet Tubeless Tc

Wheel Diameter 622mm (29" / 700C)

Type Of Decals Waterslide

Profile height 21mm

Internal Width 30mm

External Width 35mm

Hub

Hub type 350

Axis system 12mm Thru Axle

Made in Dimensions 148mm boost

Disc Attack System Disc Center Lock

Freewheel Body Sram Xd Steel (ssram)

Cassette interface Sram Xd

Freewheel System Ratchet System 24

Spokes And Nipples

Left Side Spokes Dt Hybrid 1 Straightpull

Right Side Spokes Dt Hybrid 1 Straightpull

Ray Pattern Three-Cross (1:1)

Nipples Dt Pro Lock Squorx Pro Head Alu

Accessories

Tape included Tubeless tape 32mm

Including Valve Tubeless MTB valve 32 mm

FRONT WHEEL
HX 1700 SPLINE 29 - 30 mm CL 15/110 mm
Rim inner width 30mm, Rim height 21mm
for thru axle 15/110mm TA Boost

Products category Hybrid Mtb

Field of application Hx

Product Type 1700

Net Weight [g] 997,000

Maximum Recommended Weight 150 Kgs

ASTM classification 4

Recommended for E-Bikes Yes (max. 32km/h or Max. 250W)

Material Aluminum

Tire interface Hooked / Crotchet Tubeless Tc

Wheel Diameter 622mm (29" / 700C)

Type Of Decals Waterslide

Profile height 21mm

Internal Width 30mm

External Width 35mm

Hub

Hub type 350

Axis system 15mm Thru Axle

Made in Dimensions 110mm boost

Disc Attack System Disc Center Lock

Freewheel Body -

Cassette interface -

Freewheel System -

Spokes And Nipples

Left Side Spokes Dt Hybrid 1 Straightpull

Right Side Spokes Dt Hybrid 1 Straightpull

Ray Pattern Three-Cross (1:1)

Nipples Dt Pro Lock Squorx Pro Head Alu

Accessories

Tape included Tubeless tape 32mm

Including Valve Mtb Tubeless Valve 32 Mm
